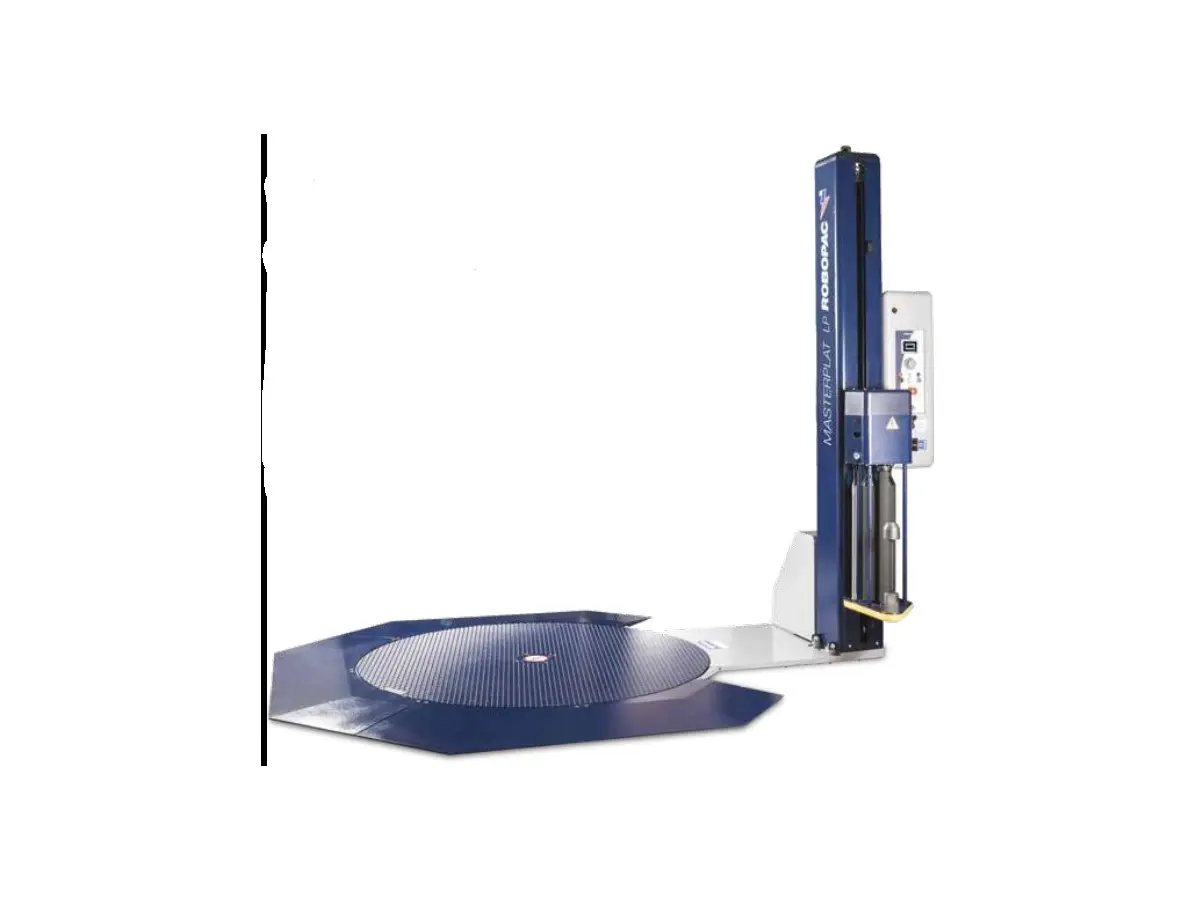

Masterplat Plus LP Low-Profile Pallet Wrapper
Thin-Turntable Wrapping for Easy Pallet-Truck Loading
The Robopac Masterplat Plus LP combines semi-automatic wrapping with a 30mm turntable and loading ramp. It suits operations that regularly present pallets by hand pallet truck and want repeatable wrapping without a conventional raised platform.
Load Capacity
Up to 1,200kg
Wrap Height
2200mm standard
Carriages
FRD, FR and PGS
Why Choose a Low-Profile Wrapper?
Easy Pallet-Truck Loading — A 30mm turntable and ramp create a practical low-level approach.
Reduce Manual Wrapping — Automated rotation and carriage travel replace repetitive hand application.
Use Space Efficiently — Configure the ramp around pallet flow and floor space.
Choose Film Control — Mechanical, panel-adjustable and powered pre-stretch carriages are available.

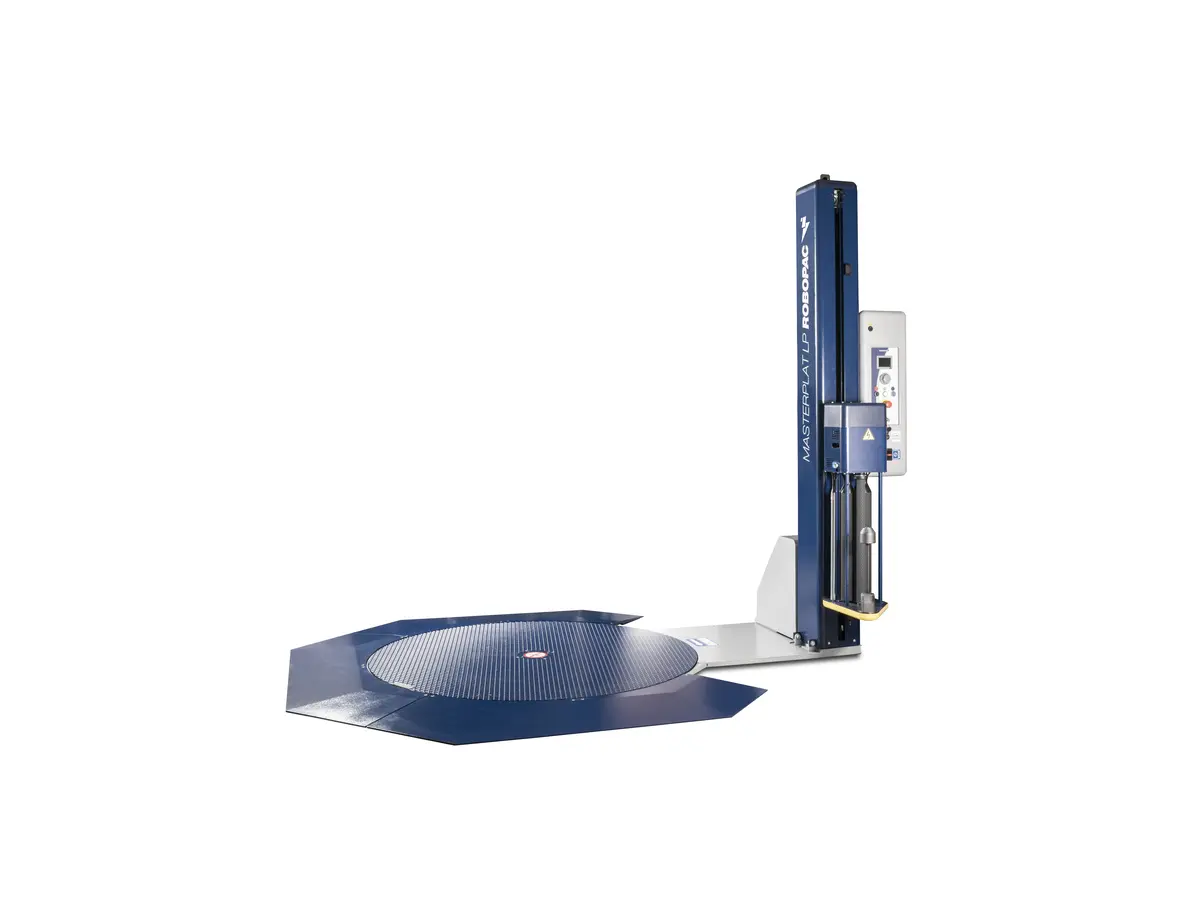

Explore the Low-Profile Loading System
See the thin turntable, loading ramp and pallet-truck approach.
Purpose-Built for Low-Level Access
Easy loading with the controls and carriage choices of the Masterplat Plus range.
- 30mm turntable height
- 1650mm diameter
- 1,200kg maximum load
- 5–12rpm speed
- 1000 × 1200mm product size
- 2200mm standard wrap height
- FRD, FR and PGS carriages
- PGS 250% fixed pre-stretch
- Configurable ramp approach
- UK installation and support
Technical Specifications
Current working specifications. Final requirements will be confirmed against the selected machine configuration.
| Specification | Masterplat Plus LP |
|---|---|
| Turntable diameter | 1650mm |
| Maximum load weight | 1200kg |
| Turntable speed | 5–12rpm |
| Maximum load dimensions | 1000 × 1200mm |
| Maximum load height | 2200mm standard; 2400, 2800 or 3100mm optional |
| Specification | Masterplat Plus LP |
|---|---|
| Turntable height | 31mm low-profile platform |
| Film carriage options | FRD, FR or PGS |
| Film pre-stretch | Fixed 250% standard with PGS carriage |
| Power supply | 220–240V, 1Ph, 50/60Hz |
| Film specification | 17–35µm; maximum roll 500 × 300mm, 20kg |
Specifications are indicative and may vary according to the selected carriage, mast height, access ramp and optional equipment.
For Pallet-Truck-Fed Warehouses and Despatch Areas
Ideal where a low loading platform improves everyday workflow.
