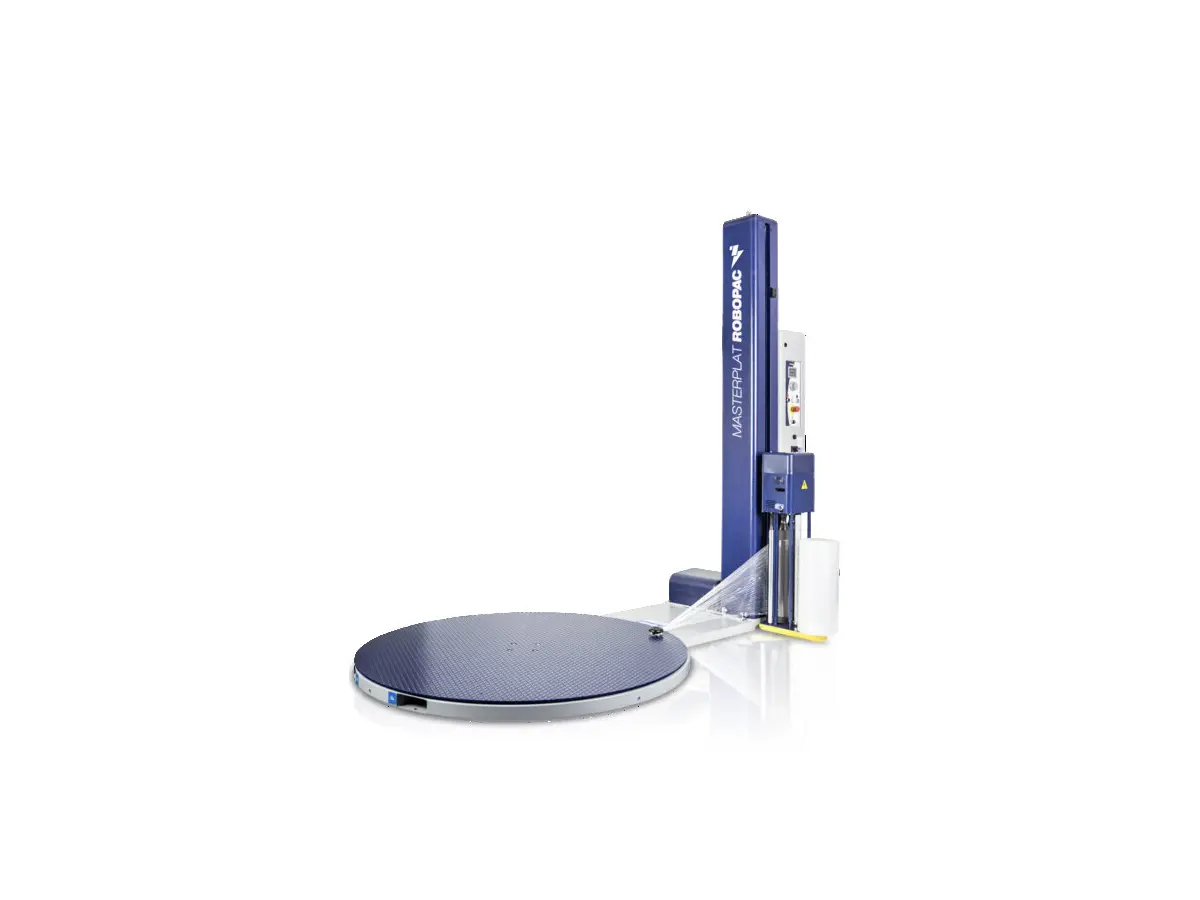

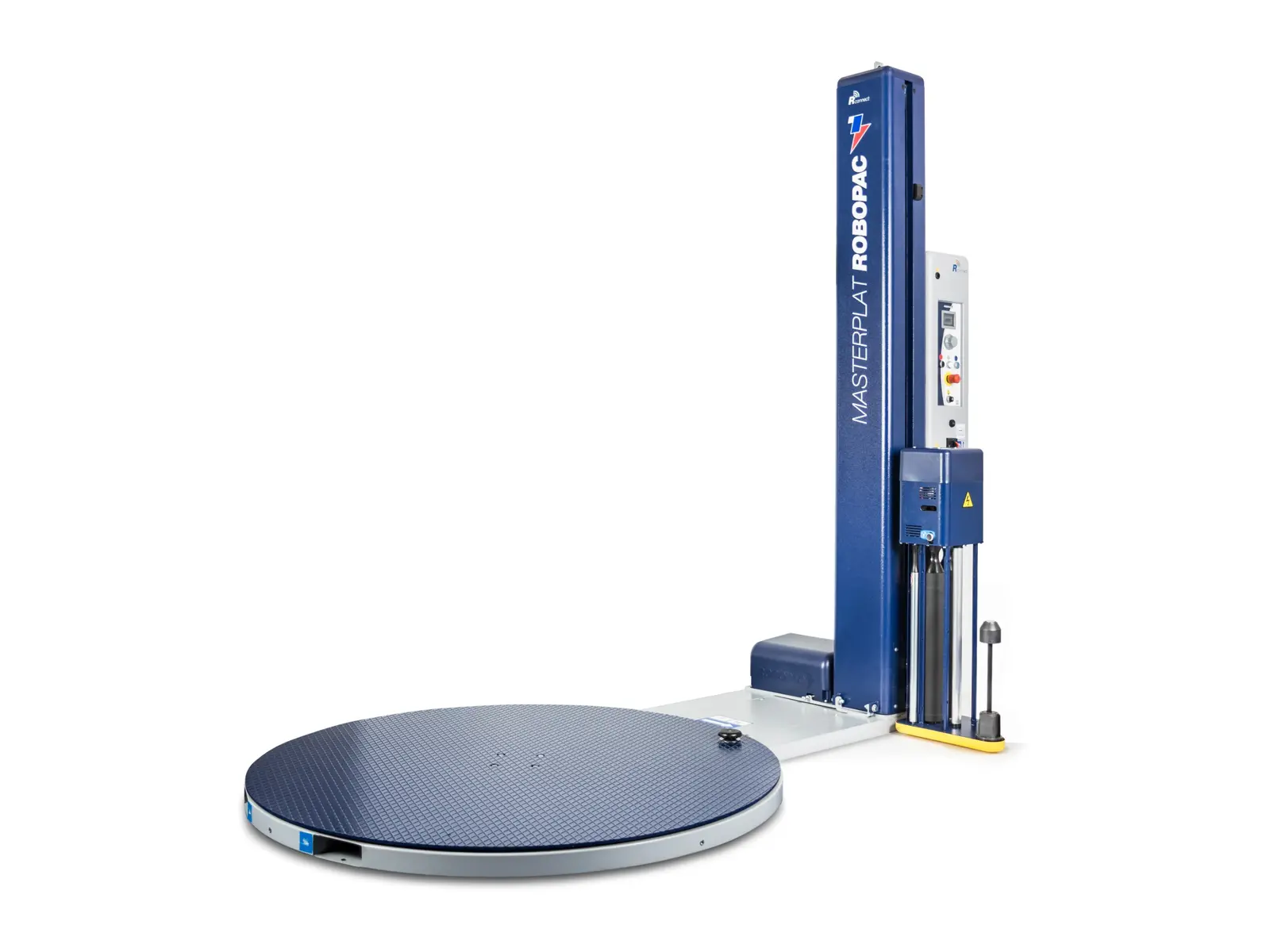

Masterplat Plus Turntable Pallet Wrapper
Consistent Semi-Automatic Pallet Wrapping with Simple Operator Control
The Robopac Masterplat Plus automates turntable pallet wrapping for warehouses, manufacturers and distribution operations. It combines a 2,000kg standard load capacity, configurable cycles and three film-carriage choices to improve load stability while reducing manual effort.
Turntable
1650mm standard
Wrap Height
2200mm standard
Carriages
FRD, FR and PGS
Why Choose the Masterplat Plus?
Replace Hand Wrapping — Automated rotation and carriage travel reduce walking, bending and hand tensioning.
Improve Consistency — Programmable wraps, speeds and film tension support repeatable containment.
Control Film Use — Match the carriage and pre-stretch performance to the load.
Simple Operation — A 3.5-inch colour display and JOG selector simplify daily adjustments.
Explore the Masterplat Plus System
See the turntable platform, machine layout and powered pre-stretch carriage.
Built for Reliable Everyday Pallet Wrapping
Specify the platform around pallet size, load weight, film and duty.
- 1650mm turntable; 1800mm optional
- 2,000kg standard load; 2,500kg optional
- 5–12rpm turntable speed
- 1000 × 1200mm standard product size
- 2200mm standard height; taller options
- FRD mechanical brake
- FR panel-adjustable brake
- PGS powered 250% fixed pre-stretch
- 230V single-phase supply
- UK installation, training and support
Technical Specifications
Current working specifications. Final requirements will be confirmed against the selected machine configuration.
| Specification | Masterplat Plus |
|---|---|
| Turntable diameter | 1650mm standard; 1800mm optional |
| Maximum load weight | 2000kg standard; 2500kg optional |
| Turntable speed | 5–12rpm |
| Maximum load dimensions | 1000 × 1200mm standard; 1200 × 1200mm optional |
| Maximum load height | 2200mm standard; 2400, 2800 or 3100mm optional |
| Specification | Masterplat Plus |
|---|---|
| Film carriage options | FRD, FR or PGS |
| Film pre-stretch | Fixed 250% standard with PGS carriage |
| Power supply | 230V, 1Ph, 50/60Hz |
| Installed power | 1.5kW (FRD/FR); 1.9kW (PGS) |
| Film specification | 17–35µm; maximum roll 500 × 300mm, 20kg |
Specifications are indicative and may vary according to the selected carriage, turntable, mast height and optional equipment.
For Warehousing, Manufacturing, Distribution and Logistics
Best for stable loads that can rotate safely on a turntable.
.png)
