Masterwrap HD Plus XL Rotary Arm Pallet Wrapper
Heavy-Duty Wrapping for Unstable, Fragile and Heavy Loads

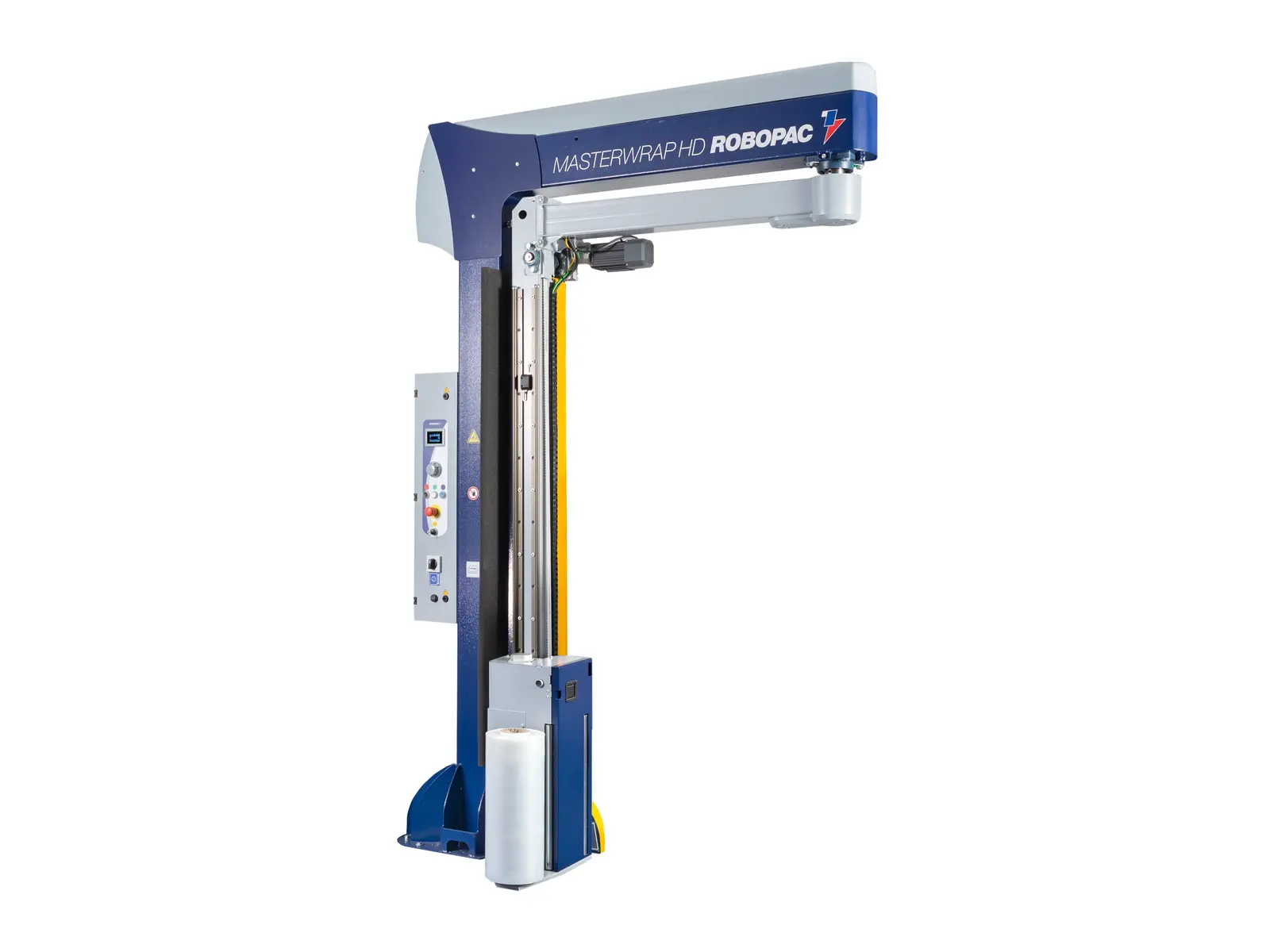

The Robopac Masterwrap HD Plus XL rotates the wrapping arm around a stationary pallet. It is designed for loads that are too unstable, fragile or heavy to rotate safely on a turntable, with configurable film carriages and robust industrial construction.
Stationary Load
The arm rotates
Load Size
1200 × 1200mm
Film Reels
Up to 20kg
Why Choose a Rotary-Arm Wrapper?
Keep Loads Stationary — Reduce movement during wrapping.
Handle Heavy Pallets — The load does not sit on a powered turntable.
Control Film — FRD, FR and PGS carriages suit different requirements.
Industrial Duty — Robust construction and 20kg reels support demanding use.
Explore the Masterwrap HD Plus XL
See the rotary arm, system layout and PGS carriage.
Heavy-Duty Wrapping Without Rotating the Pallet
A robust semi-automatic system for unstable and demanding loads.
- 7–11rpm arm speed
- 2.6–6m/min carriage speed
- 1200 × 1200mm maximum product size
- 2000mm standard height
- 230V single-phase supply
- FRD, FR and PGS carriages
- PGS 250% fixed pre-stretch
- Reels up to 20kg
- 7–35 micron film subject to testing
- UK installation and safety review
Technical Specifications
Current working specifications. Final requirements will be confirmed against the selected machine configuration.
| Specification | Masterwrap HD Plus XL |
|---|---|
| Arm rotation speed | 7–11rpm |
| Carriage travel speed | 2.6–6m/min |
| Maximum load dimensions | 1200 × 1200mm |
| Maximum load height | 2000mm standard; 2400mm optional |
| Film carriage options | FRD, FR or PGS |
| Specification | Masterwrap HD Plus XL |
|---|---|
| Film pre-stretch | Fixed 250% standard with PGS carriage |
| Power supply | 230V, 1Ph, 50/60Hz |
| Film thickness | 7–35µm |
| Maximum film roll | 500 × 300mm |
| Maximum roll weight | 20kg |
Specifications are indicative and may vary according to mast height, film carriage and optional equipment.
For Unstable, Fragile, Heavy and Irregular Loads
Ideal where turntable rotation could cause movement or damage.
